Form Lift

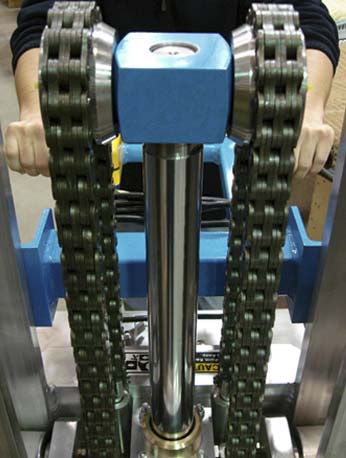

![Form Lift Chain](images/automation-plus/form-lift-1.jpg)

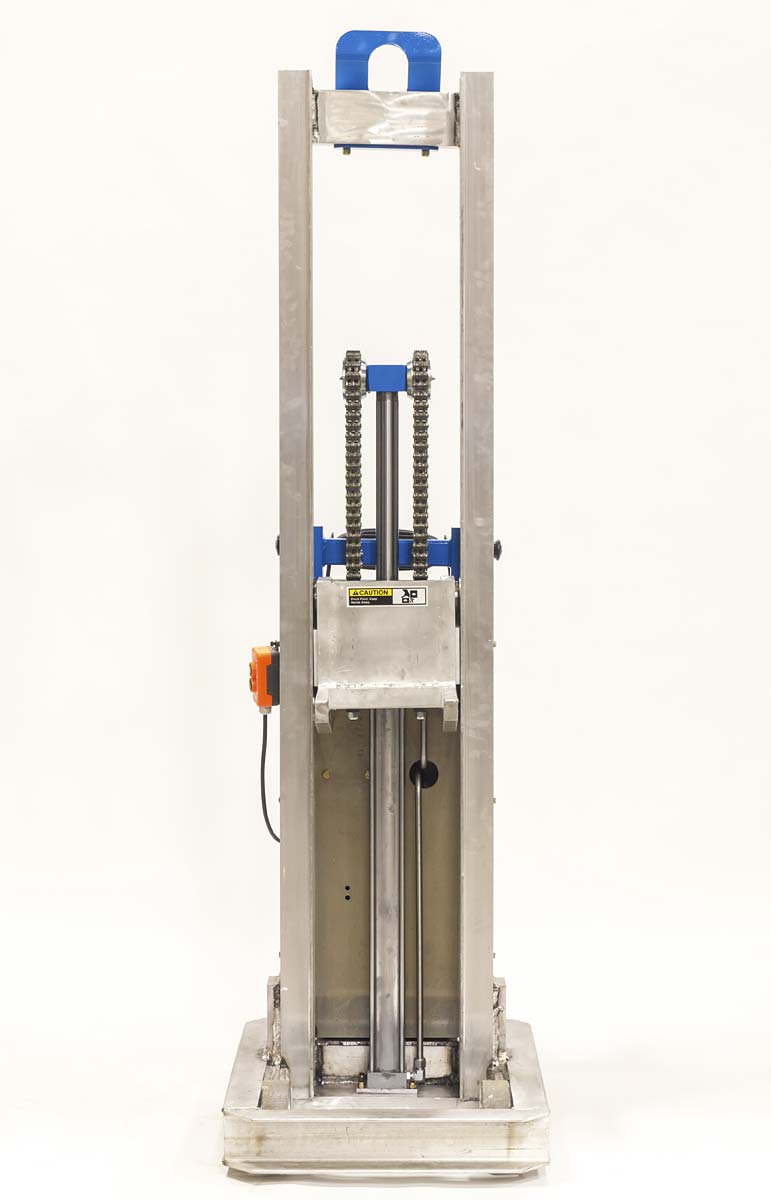

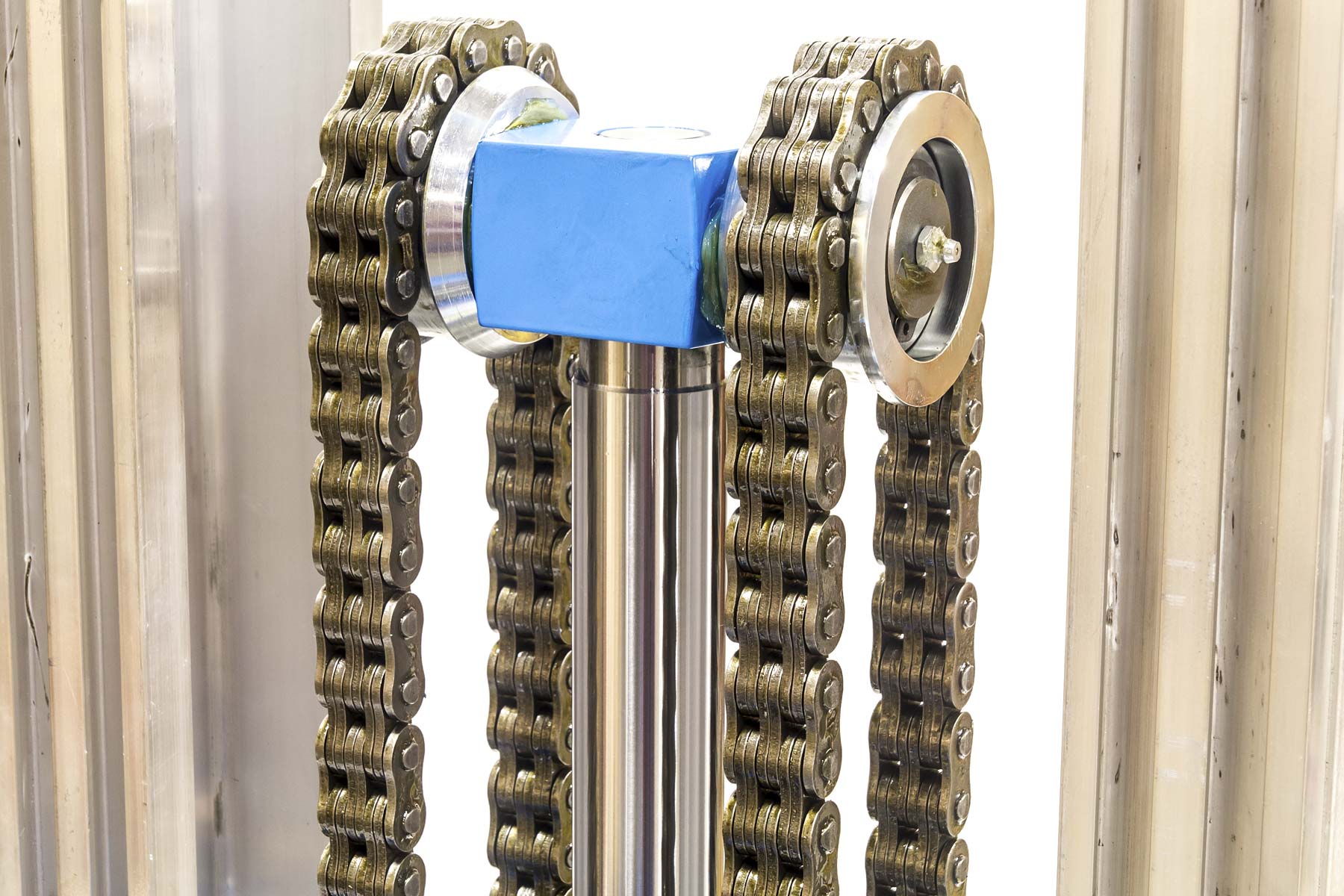

Heavy Duty forklift chain with large roller bearings. 1.75" diameter hard chrome plated piston rod.
![Form Lift Remote Control](images/automation-plus/form-lift-2.jpg)

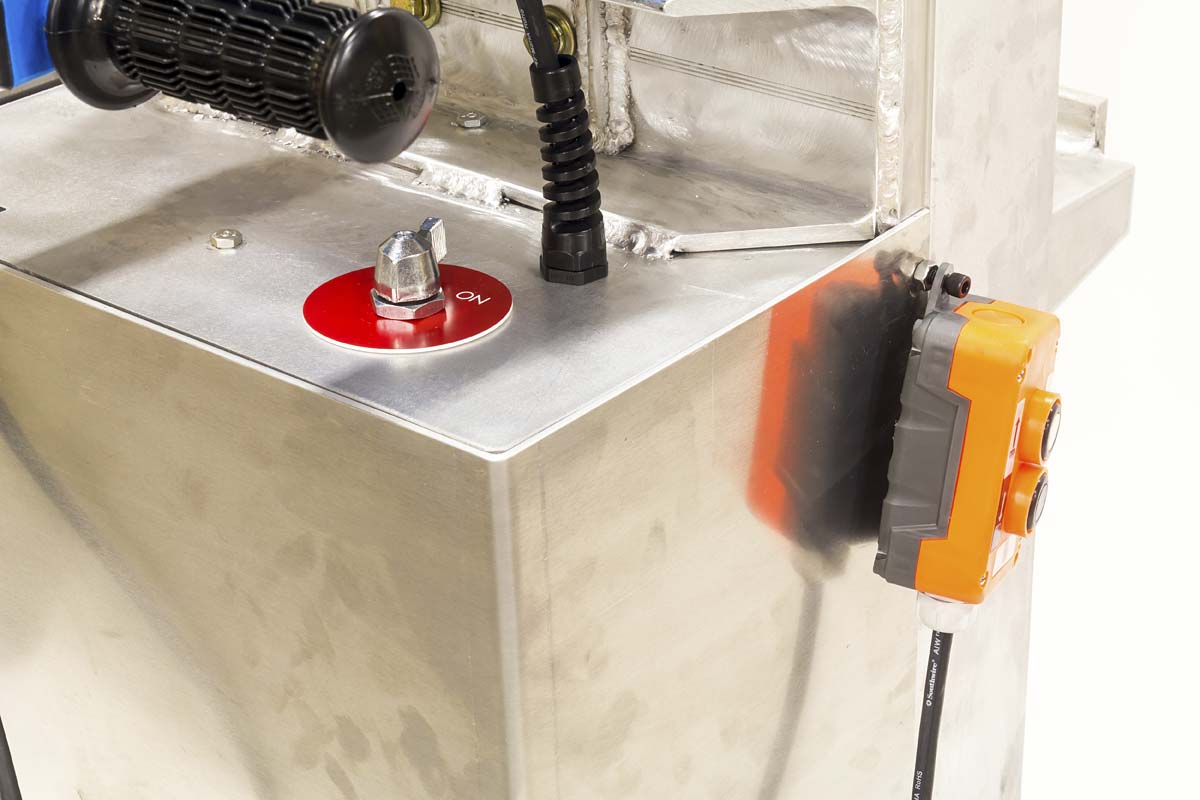

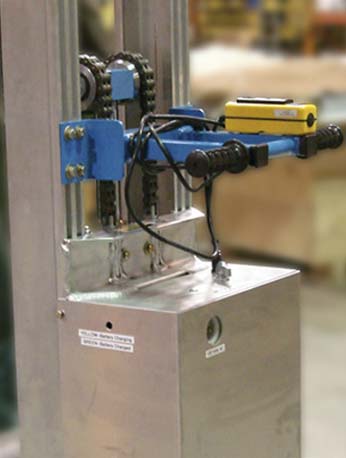

Tethered remote control switch, 120 volt plug-in for battery charger, viewing port in side of enclosure shows charging status.

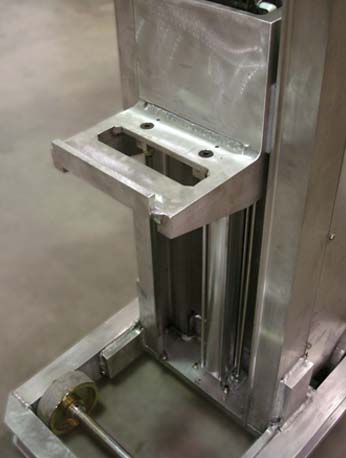

![Form Lift Aluminum Frame](images/automation-plus/form-lift-3.jpg)
Heavy duty welded aluminum solid frame. Solid steel zinc dichromate wheels, solid axle with grease zerks for heavy duty roller wheel bearings.

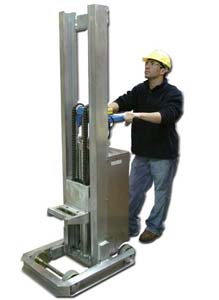

![Form Lift Operation](images/automation-plus/form-lift-operator-tn.jpg)
Controls are conveniently located for the operator, including a remote control switch, allowing unit to be raised and lowered at a safe distance.
Charger is self contained and connects to any 120 volt outlet.
Weight Capacity:
Lifting: 2000 lbs.
Holding: 8000 lbs.
Lifting Height: 72.0 inches
Lift Speed (no load): 100 IPM

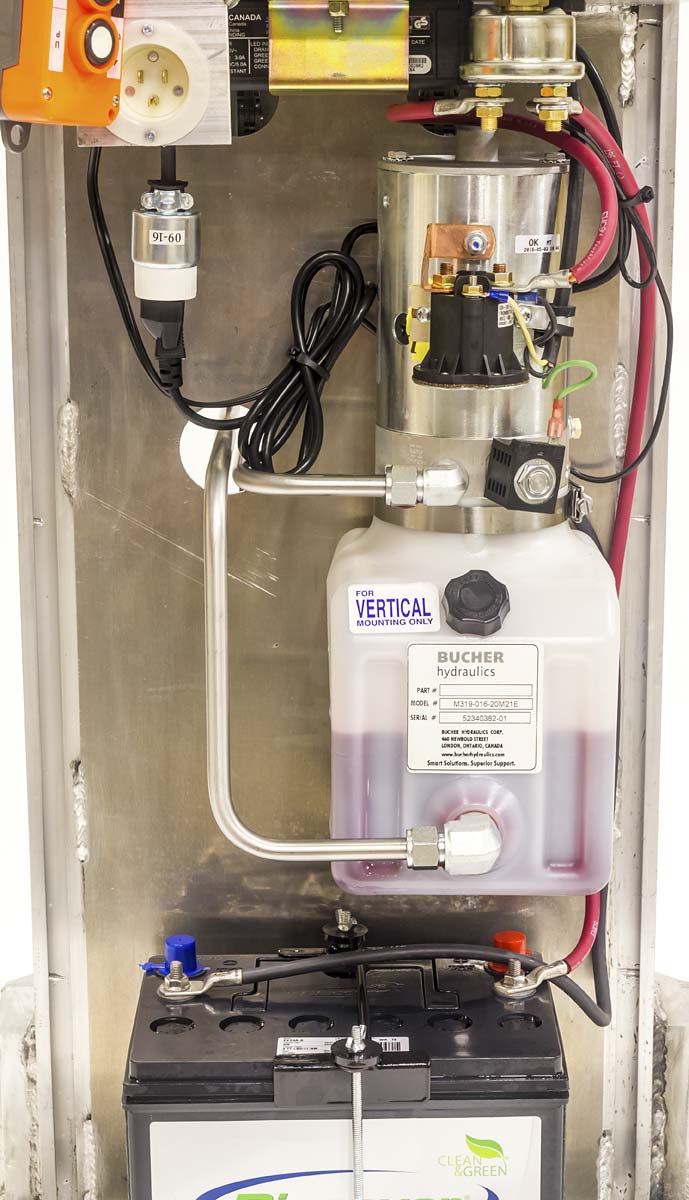

Power Supply: 12 Volt Rechargeable Gel Battery
