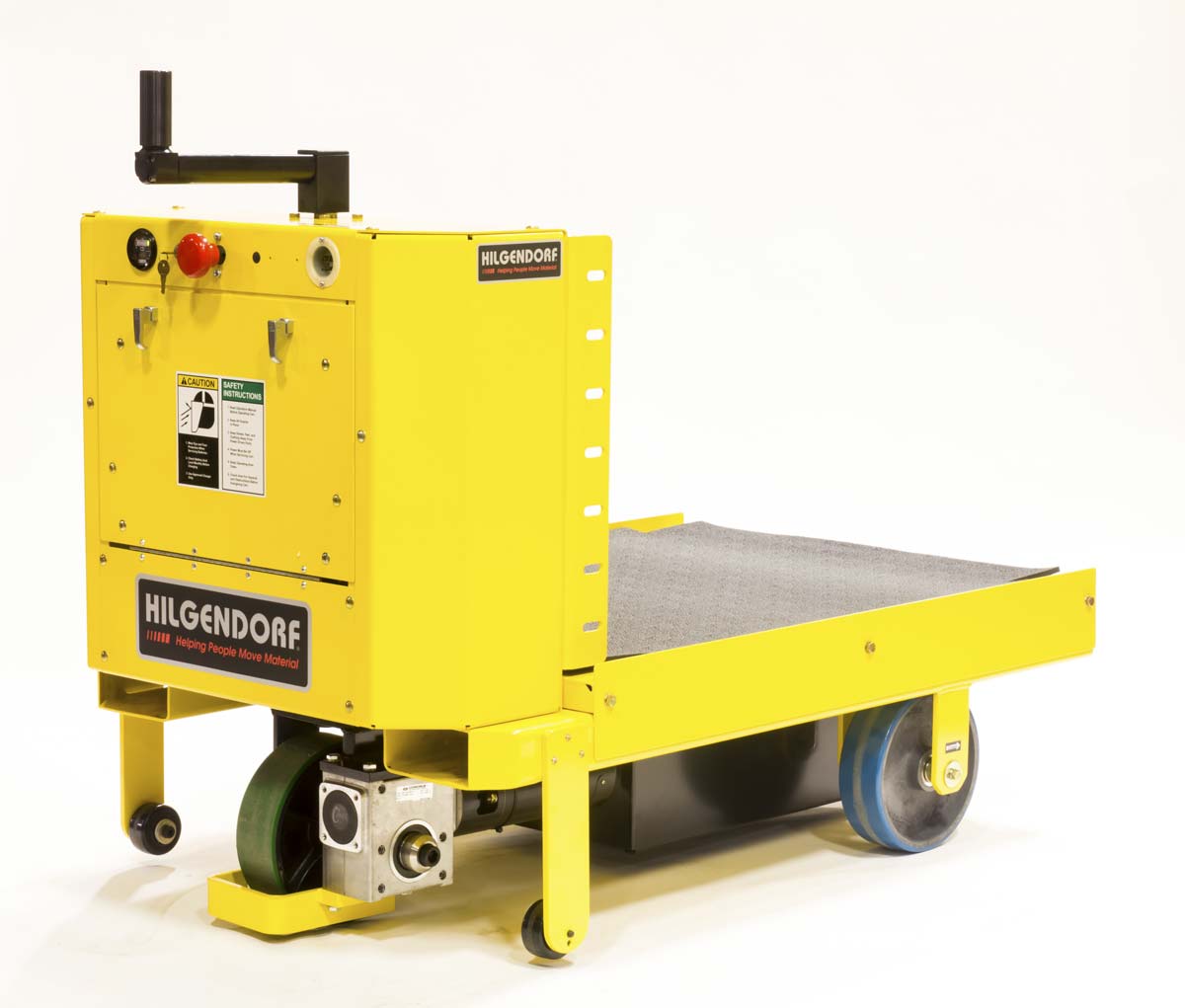

Mold / Die Cart (Heavy Duty)
Click to Enlarge
We offer three Mold / Die Cart models:
- Custom Hilgendorf Mold Cart 3,000 Lb Cap,
5,000 Lb Stationary Cap,
34 In W x 45 In L
Requires 3 - Batteries, Part Number BATT-31EV-0260, Includes Charger - Custom Hilgendorf Mold Cart 6,000 Lb Cap,
12,000 Lb Stationary Cap,
34 In W x 45 In L
Requires 3 - Batteries, Part Number BATT-31EV-0260, Includes Charger - Custom Hilgendorf Mold Cart 8,000 Lb Cap,
13,900 Lb Stationary Cap,
34 In W x 45 In L
Requires 3 - Batteries, Part Number BATT-31EV-0260, Includes Charger
Click here to request a quote.
If you don't see what you want, exactly how you want it, contact us for a quote. Customs are our specialty.
- Designed for maneuvering through tight spaces
- Narrow width allows it to travel through doors or maneuver close to machinery or equipment
- Ergonomic, one-handed steering - turns on a dime
- Push button controls for horn, forward/reverse, and travel speed
- Variable speed control
- Quiet, 36-Volt electric power with fully automatic built-in battery charger
- Battery discharge indicator with hour meter
- Up to 8000 pound load capacity
- Improves efficiency and reduces injury
WARRANTY: 1 year on electrical and mechanical, 2 years on drive system.
Features

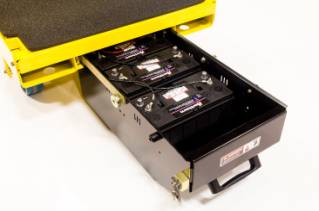

Powered by heavy duty, low maintenance, marine type batteries, easily accessible in a rollout tray, securely latched during operation, with optional battery tray lock available.

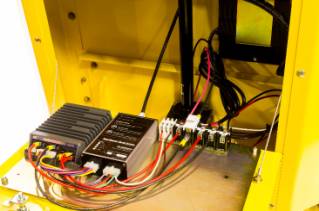

Simple, long lasting, plug-in components. LED indicators in control box show working functions.

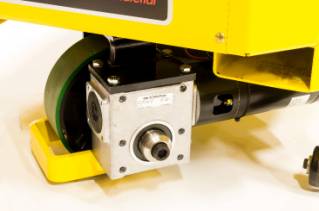

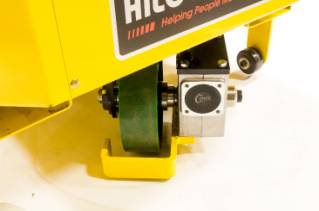

Cone drive, helical worm gear reducer provides superior torque to single drive wheel, allowing for maneuverability in tight spaces.
Compact design with large load capacity allows cart to maneuver where forklifts cannot. Integrated tie down for anchoring loads with ratchet straps.

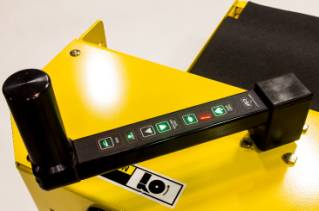

Single control handle presents all control functions at the operator's fingers. Easy-touch handle provides effortless travel.

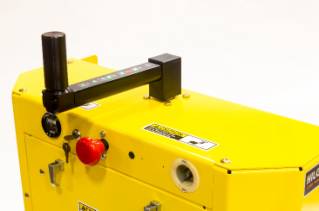

Keyed operation prevents unauthorized access. Large E-stop adds safety by killing all power from the batteries. Built-in battery charger is powered by an extension cord from the front panel. Optional strobe light available.
Toe guard and anti-tip wheels are standard on all units.

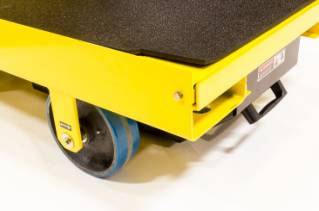

High capacity, greaseable, roller bearing wheels for long life. Foam mat and deck sides contain items on the deck.
